Fimet

品牌简介 Fimet Motori & Riduttori S.p.a 始建于1910年，总部位于意大利，在电力驱动领域以高标准而著称。 主要产品 电机，减速机等 型号示例 3MA63C2 ,3MA63A2 ,3MA71AR2 产品图片

Aluminium frame 3MA series

The three-phase motors 3MA series, closed, externally fan cooled, manufactured according to the main international standards and particularly to the IEC 34 and 72 rules , are available in the sizes from 63 up to 132 , with pole number 2, 4,6 and 8 and with output power from 0,12 kW up to 11 kW. They are featured by aluminium die-cast frame with removable feet, by the IP 55 protection level, by the

Aluminium frame MA series

The three-phase motors MA series, closed, externally fan cooled, manufactured according to the main international standards and particularly to the IEC 34 and 72 rules , are available in the sizes from 112 up to 200 , with single speed pole numbers 2, 4, 6 and 8 and others by request and in two speed version, either single or double winding.Available output power from 1,5 kW up to 37 kW. They are featured by aluminium die-cast frame with removable feet, by the IP 55 protection level, by the F class insulation and by shielded type for life lubricated bearings. Windings have been manufactured in such a way so as to let the standard version MA motors run under Frequency Converter supply up to 400 V without any further particular measure.



Cast iron frame 1M series , 1M-1 version

The three-phase motors 3MA series, closed, externally fan cooled, manufactured according to the main international standards and particularly to the IEC 34 and 72 rules , are available in the sizes from 160 up to 355 , with pole number 2, 4,6 and 8 and with output power from 4 kW up to 315 kW. They are featured by cast iron frame with fixed feet, by the IP 55 protection level, by the F class insulation, by bearings equipped with greasing facilities ( apart from the 160 size where for life lubricated bearings are foreseen ) and by PTC type thermoprotectors on windings.

Cast iron frame M series

The three-phase motors M series, closed, externally fan cooled, manufactured according to the main international standards and particularly to the IEC 34 and 72 rules , are available in the sizes from 225 up to 400 , with single speed pole numbers 2, 4, 6 and 8 and others by request and in two speed version, either single or double winding.Available output power from 18,5 kW up to 560 kW. They are featured by cast iron frame with removable feet, by the IP 55 protection level, by the F class insulation, by bearings equipped with greasing facilities and by PTC type thermoprotectors on windings starting from size 280. Windings have been manufactured in such a way so as to let the standard version M motors run under Frequency Converter supply up to 400 V without any further particular measure.

MCV, ACV series, fabricated steel frame
	THREE PHASE INDUCTION MOTORS FOR CONVERTER DUTY – TOTALLY ENCLOSED – LOW VOLTAGE 400 / 690 V 50 HZ – SIZE 450 - IC 411 EXTERNALLY FAN COOLED - IC 416 FORCED VENTILATION – IP 55 PROTECTION – WELDED COPPER BARS SQUIRREL CAGE ROTOR – S1 SERVICE – ACCORDING TO IEC STANDARDS

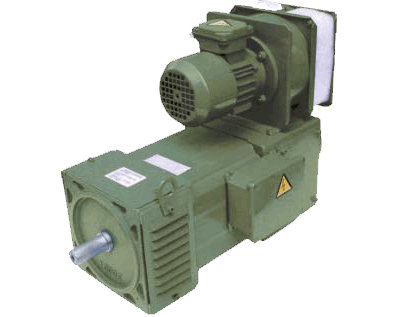

DC motors CC series

DC motors with fully laminated stator of CC series comply with CEI 2-3 standards , brochure 355 and IEC 34 and IEC 72 standards , in the mounting positions foreseen by the UNEL standards . They are available in the 80 up to the 450 size , with output power from 0,4 kW up to 865 kW. CC motors are all 4-pole motors , with class H windings and available with protection levels IP 23, IP 44 and IP 44 R, IP 55 and IP 55 R.

HV series, type AMH

They are fabricated steel motors, from size 355 up to 560, with three different types of cooling and protection : IP23 selfventilated, IP44 air-to-water heat exchanger and IP54 air-to-air heat exchanger. Available with pole numbers from 2 up to 8, with output power up to 1600 kW, in the basic version the manufacturing program foresees 6000 V, 50 Hz motors. The production range can be extended to other supply voltages, to 60 Hz and other pole numbers and customized versions
