Vane Wheel Flow Sensors FA |
|
|
for measuring standard flow velocity, standard volume flow |
|
|
|
|
|
|

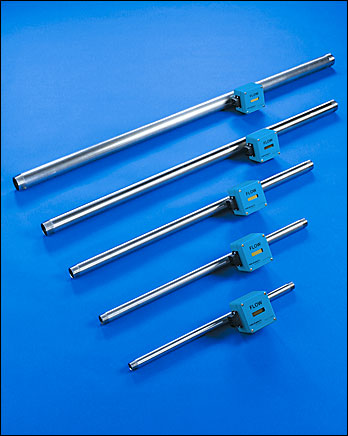

Measuring tubes TA·Di.ZG1b with integrated
transducer U10a |
|
|
|
|
|
|
Measuring tubes TA·Di.ZG2b with direct cable outlet for
connection to a hand-held HTA or a separate
transducer U10a |
|
|
|
|
|
|
tubes in accordance with EN ISO 1127 / DIN 2463 |
|
|
|
|
|
tube connections: external thread in accordance with
DIN 2999 |
|
|
|
|
|
|
connection to tubes with Di 8 mm is with cutting ring
fitting for tubes 12x2 mm |
|
|
|
|
|
|
input/output section: aspect ratio approx. 2/3 to 1/3 |
|
|
|
|
Measuring tube measurable value inside ?[mm] |
Smallest
measurable
value
[Nm3/h] |
Terminal
value
[Nm3/h] |
8 |
0,04 |
11 / 22 |
16 |
0,14 |
43 / 86 |
21,6 |
0,26 |
79 / 158 |
27,2 |
0,42 |
125 / 250 |
35,9 |
0,73 |
219 / 438 |
41,8 |
0,99 |
296 / 592 |
|
|
|
|
|
|
|
|
|
|
|

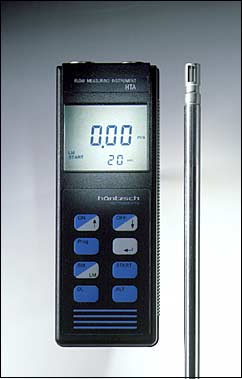

hand-held instrument with IP64 type of protection to which all H?ntzsch TA
sensors with thin-film sensor element can be connected |
|
|
|
|
|
|
|
|
high-contrast LCD liquid crystal display, measured value display 13 mm
high four-digit with decimal point as well as affiliated display unit, display of
duration of measurement in seconds 6 mm high, adjustment and
configuration instructions, operator's information, status display 3 mm high |
|
|
|
|
|
|
|
|
Schnittstelle zur direkten übergabe der gespeicherten Messwerte
an einen PC |
|
|
|
|
|
|
|
|
instantaneous values every second. Display of standard velocity v,
standard volume flow V/t or temperature (resolution 1 °C), selectable. Display of instantaneous value in the START and also START/STOP mode also
with long-term measurement. Display units: m/s, m3/h, l/min, °C |
|
|
|
|
|
|
|
|
|
power supply by 9 V compound battery, running time approx. 50 hours |
|
|
|
|
|
|
|
power supply by 9V battery or plug-in power supply |
|
|
|
|
|
|
|
analog output 0 . 4 V = 0 . x m/s |
|
|
|
|
|
|
|
data and measured value storage for 500 data records. When being stored
the data records are automatically marked with a group number (max. 99)
and serial number |
|
|
|
|
|
|
|
|
|
optional accessories: RS232 / V24 adapter for data transmission to an IBM
compatible PC / μP-Flowtherm extension cable 3 m or 5 m long, also with
waterproof connector / μP-Flowtherm Y cable for connection to two sensors at the input of the μP-Flowtherm / μP-Flowtherm carrying case / μP-
Flowtherm light metal carrying case / 9 V battery |
|
|
|
|
|
|
|
|

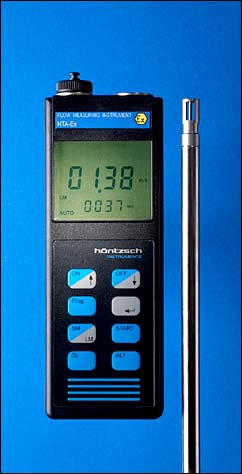

hand-held instrument in ATEX EEx ia IIC T4 type of protection to which all
H?ntzsch TA sensors with thin-film sensor element can be connected |
|
|
|
|
|
|
|
|
high-contrast LCD liquid crystal display, measured value display 13 mm high
four-digit with decimal point as well as affiliated display unit, display of
duration of measurement in seconds 6 mm high, adjustment and
configuration instructions, operator's information, status displays 3 mm high |
|
|
|
|
|
|
|
|
interface for direct transfer of the stored measured values to a PC |
|
|
|
|
|
|
|
instantaneous values every second. Display of standard velocity v, standard
volume flow V/t or temperature (resolution 0.1 °C), selectable. Display of
instantaneous value in the START and also START/STOP mode also with long
term measurement. Display units: m/s, m3/h, l/min, °C |
|
|
|
|
|
|
|
|
power supply by Li-Ion accumulator. Charge by using the appropriate
charger in the 6-pin flange socket. Charging time approx. 4 hours, running
time approx. 50 hours |
|
|
|
|
|
|
|
|
analog output 0 . 4 V = 0 . x m/s |
|
|
|
|
|
|
|
data and measured value storage for 500 data records. When being stored
the data records are automatically marked with a group number (max. 99)
and serial number |
|
|
|
|
|
|
|
|
|
|
|
